• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl

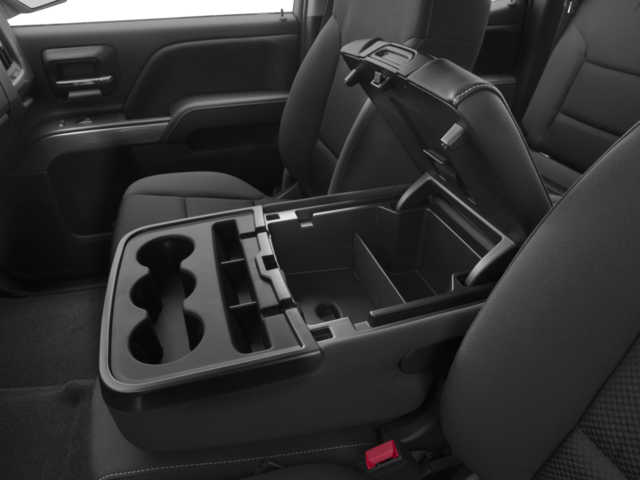

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (Upgradeable to (AZ3) front 40/20/40 split-bench seat.)

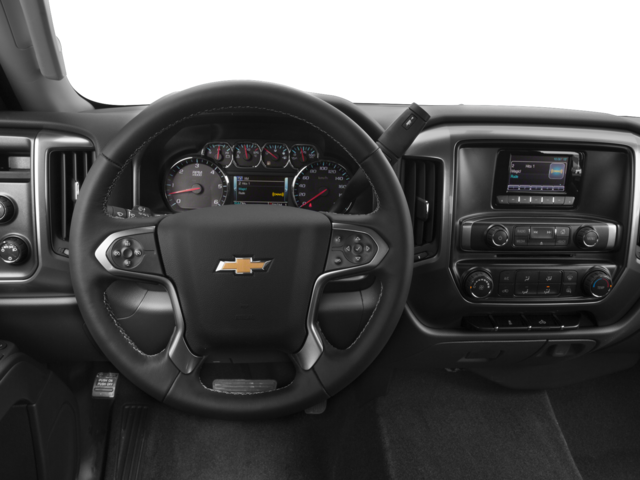

• Steering column, manual Tilt-Wheel
• Steering wheel

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup box
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating Ball with smart flow power steering system
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Transfer case, with floor-mounted shifter (Included with 4WD models only.)

• Daytime Running Lamps with automatic exterior lamp control
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Tire Pressure Monitoring System (does not apply to spare tire)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

TRAILERING WIRING PROVISIONS, FOR CAMPER, FIFTH WHEEL AND GOOSENECK TRAILER

• includes additional 7-way wiring harness is located at the rear of the pickup box attached to the rear frame cross member

SUSPENSION PACKAGE, STANDARD

• includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)

WHEELS, 17" (43.2 CM) STEEL

• includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

PICKUP BOX

• (STD)

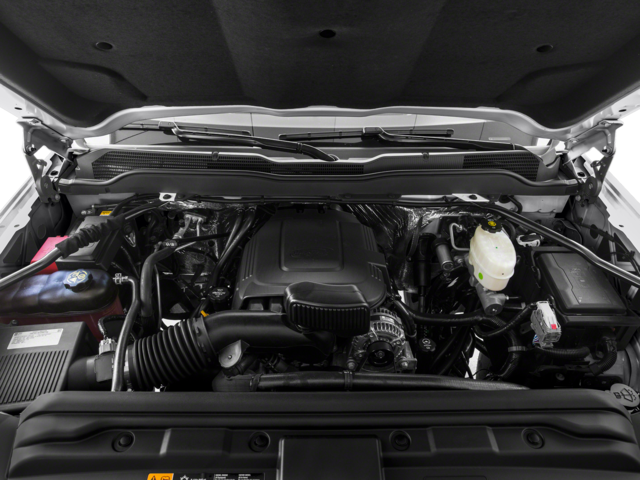

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI, E85-COMPATIBLE, FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD)

• GLASS DEEP-TINTED
• SUMMIT WHITE
• LED LIGHTING CARGO BOX WITH SWITCH ON CENTER SWITCH BANK
• REMOTE KEYLESS ENTRY Includes (A91) remote locking tailgate.)
• MIRROR INSIDE REARVIEW AUTO-DIMMING
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 4.10 RATIO
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp and includes (DD8) auto-dimming inside rearview mirror.)
• LICENSE PLATE KIT FRONT
• POWER OUTLET 110-VOLT AC
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• TRAILERING EQUIPMENT Trailering hitch platform 2.5" with a 2.0" insert for HD 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps backup lamps right and left turn signals an electric brake lead battery and a ground The trailer connector also includes the 4-way for use on trailers without brakes - park brake/turn lamps Includes (JL1) trailer brake controller.
• GVWR 9500 LBS. (4309 KG)
• SUSPENSION PACKAGE STANDARD includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)
• TIRE SPARE LT265/70R17E ALL-TERRAIN BLACKWALL
• WHEELS 17" (43.2 CM) STEEL includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. (STD)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

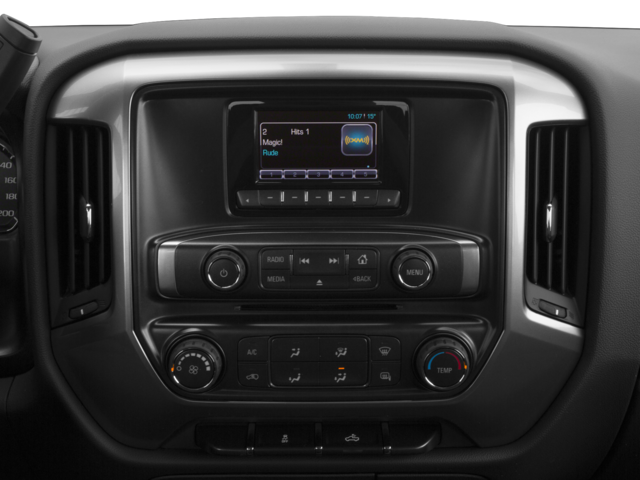

• AUDIO SYSTEM 4.2" DIAGONAL COLOR DISPLAY AM/FM STEREO with USB port and auxiliary jack (STD)
• WT CONVENIENCE PACKAGE includes (AKO) tinted windows (KI4) 110V outlet (AQQ) Remote Keyless Entry (A91) remote locking tailgate (UVC) Rear Vision Camera and (DL8) outside heated power-adjustable mirrors.
• REMOTE LOCKING TAILGATE
• PICKUP BOX (STD)
• PAINT SOLID
• WHEELS 17" X 7.5" (43.2 CM X 19.1 CM) FULL-SIZE STEEL SPARE.
• DARK ASH WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD)
• TRAILERING WIRING PROVISIONS FOR CAMPER FIFTH WHEEL AND GOOSENECK TRAILER includes additional 7-way wiring harness is located at the rear of the pickup box attached to the rear frame cross member
• REAR VISION CAMERA with dynamic guide lines
• LAMPS SMOKED AMBER ROOF MARKER

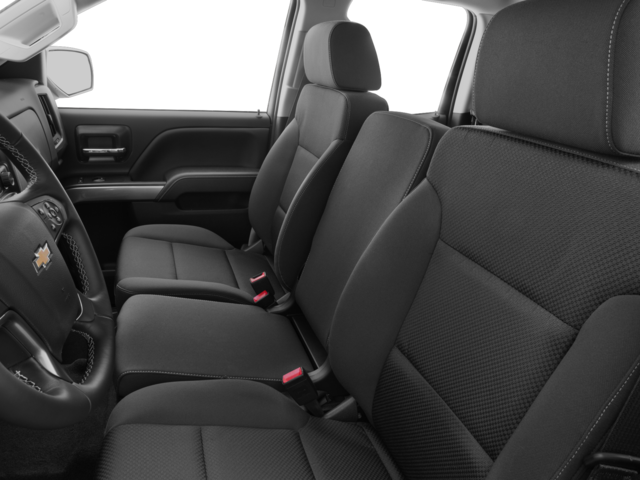

• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER RECLINE with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• TIRES LT265/70R17E ALL-TERRAIN BLACKWALL
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Split Bench Seat

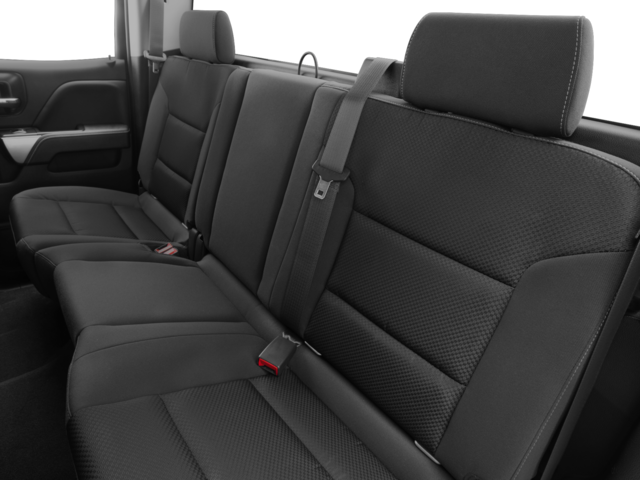

• Rear Bench Seat
• Adjustable Steering Wheel
• Power Windows
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Passenger Air Bag On/Off Switch
• Telematics
• Requires Subscription
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3894
• Curb Weight - Rear (lbs): 2596
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 21100
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1410
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14100
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3525
• Maximum Trailering Capacity (lbs): 14500
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QXT
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QXT
• Rear Tire Order Code: QHQ
• Spare Tire Order Code: ZXT
• Front Tire Size: LT265/70R17E
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT265/70R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT265/70R17E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.1
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 53.1
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 158.10
• Length, Overall w/o rear bumper (in): 248.90
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 77.87
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 141.60
• Cab to Axle (in): 55.24
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.75
• Ground Clearance, Rear (in): 8.40
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.80
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.60
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): 62.20
• Cargo Volume (ft³): 76.3
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 38.67
• Second Leg Room (in): 34.63
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.23
• Summary
• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Double Cab Pickup
• Body Code: E63
